Tubular Heater Equipment

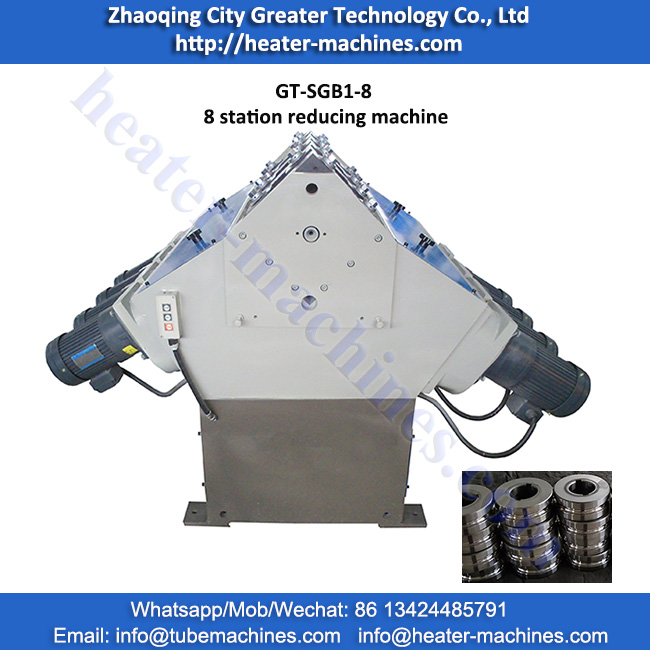

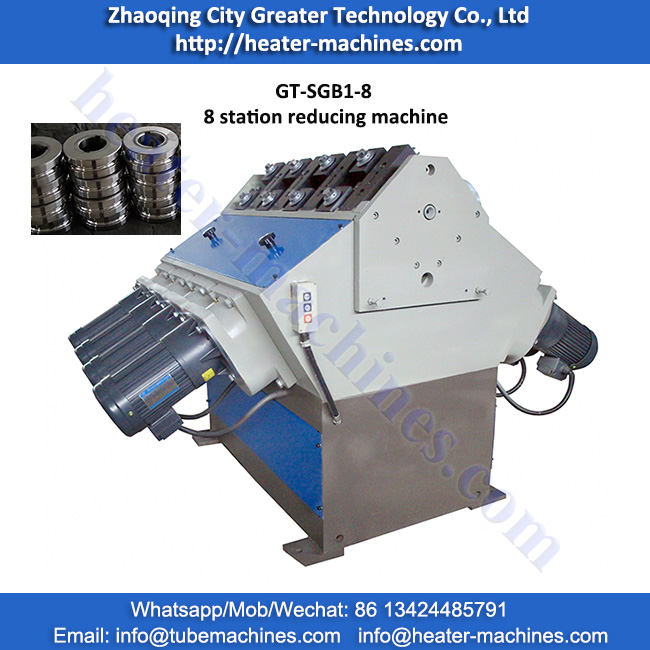

8 Group Tubular Heater Shrinking Machine (SG8A)

Item No.: GT-SGB1-8
Rotating speed of Roller: 60rpm
Roller dimension: outside diameter φ98.5 mm; inside diameter φ45 mm; thickness 38 mm
Motor power (single): 0.75KW
INQUIRY

GT-SGB1-8 reducing machine

Function
Reduce heater to increase density;

Features

Small power;

Few noise;

The best reference range to shrink (mm): Φ4-Φ10mm variety of specifications，length shorter than 1 meter(within the reference range, the life of the equipment will be longer)

Suitable tubes' material: copper, aluminum, iron, stainless steel etc.;

Suitable tube's shape: round;

Shrinking speed: uniform speed,non-uniform speed (according to the demand of customer).

Change roller or roll assemble can reduce different diameter;

Can match with our feeding machine to increase of efficiency;

Can match with our marking mechanism for mark your brand heaters.

Application
Round heater reduce, such as tubular heater.

Information need for order GT-SGB1-8 roll reducing machine
